RESINDEK® RESHIELD™
OVERLAY FLOORING PANEL

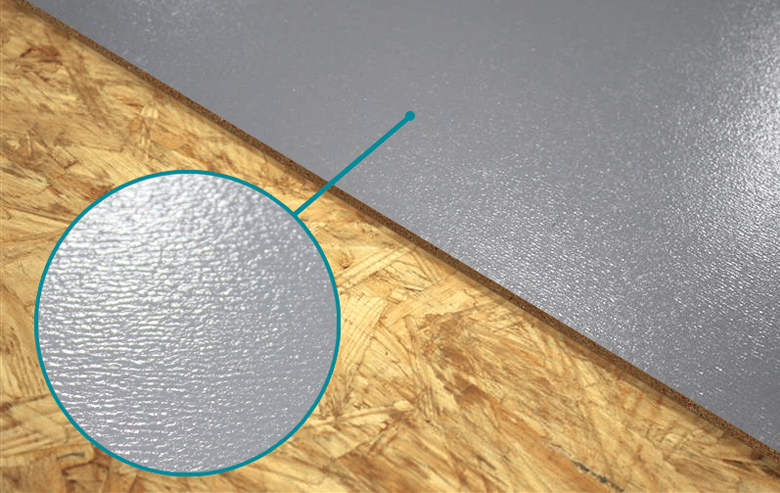

Our innovative ResinDek ReShield flooring panels provide a seamless upgrade for existing floor surfaces that need enhanced performance characteristics. Whether you require specific ESD properties, specialized wear resistance for robotic traffic, or improved gouge and slip resistance, these versatile panels deliver superior results. At just 1/4” thick, these lightweight panels install directly over most level substrates —including plywood, OSB, chipboard, and unfinished ResinDek floors — without requiring extensive demolition or preparation work.
Panel Thickness:1/4"
Panel Weight:1.09 psf
Pallet Jack & Product Load Limits:Pallet jack rolling loads
up to 3,500 lbs
Mobile Robot & Product Load Limits:AMR rolling loads
up to 3000 lbs
* Reference the Load Span Tables below for Allowable Uniform & Total Product Loads.
* See Full Product Comparison Chart here.
INSTANT FLOOR PERFORMANCE UPGRADE WITHOUT DISRUPTION
The panels excel in both automated material handling environments and traditional warehousing and manufacturing applications, providing consistent performance across mezzanine installations. Their durability, combined with quick installation and minimal disruption to existing operations, delivers immediate value while extending the life of your current flooring infrastructure. By eliminating the need for complete floor replacement, ResinDek ReShield panels offer a cost-effective path to enhanced floor performance without compromising on quality or functionality.
RESINDEK® RESHIELD™ PRODUCT DESCRIPTION
ResinDek Reshield is manufactured with mostly recycled and recovered wood fibers, environmentally friendly resins with no added urea formaldehyde, and a wax emulsifier for moisture resistance. The ingredients are combined and compressed under extremely high pressure and temperature, resulting in a panel with superior physical properties. ResinDek composite engineered flooring panels are custom manufactured and available in sizes up to 4' x 10'. SCS Global Certifications, LEED® and FSC® ResinDek LD panels are certified to have No Added Formaldehyde and conforms to SCS Recycled Content Standard V7-0. ResinDek panels can contribute towards earning points for LEED® qualified buildings. When required ResinDek panels are available with FSC® Certification. FSC® License Code FSC-C124474.
RESINDEK® RESHIELD™ PRODUCT SPECIFICATIONS
ResinDek ReShield features a 0.25” thickness profile. Load capacity varies based on the underlying substrate, with maximum combined live and dead loads reaching up to 3,000 lbs. for AGVs/AMRs and 3,500 lbs. for pallet jacks. For comprehensive load ratings and detailed master specifications, contact Cornerstone Specialty Wood Products' technical team.
RESINDEK RESHIELD FOR AGVS, AMRS, HEAVY EQUIPMENT, ROLLING LOADS & PALLET JACKS - For use with sub floor
| Product Name | Substructure | Pallet Jack & Product Load Limits | Robot & Product Load Limits | Maximum Robot Contact Pressure |
|---|---|---|---|---|
| ResinDek® ReShield | Allowable loads are dependent upon the substrate that it is being installed on. | up to 3,500 lbs. | up to 3,000 lbs. | 1,000 psi |
NOTES FOR TABLES ABOVE:
- ResinDek ReShield allowable loads are dependent upon the substrate that it is being installed on. Contact us for more information.
- Testing was completed with polyurethane caster wheels and any deviation or alternative wheels such as crowned, steel or plastic could void the warranty. Contact CSWP for more information.
- Contact pressure values are to be used as a guide. Please consult factory for specific robot usage.
OPTIONAL FINISHES
FOR HEAVY EQUIPMENT, STORAGE, ROLLING CARTS & PALLET JACKS
FOR ROBOTIC TRAFFIC
