RESINDEK® WR
WATER RESISTANT FLOORING PANEL

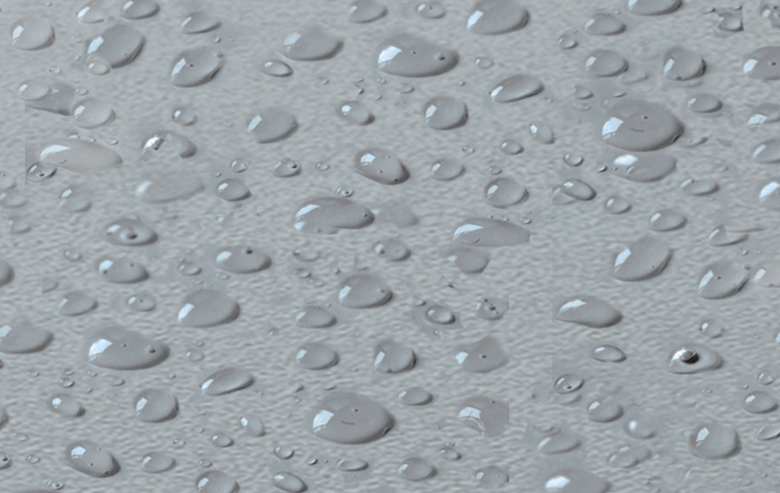

ResinDek WR flooring panels are perfect for self-storage facilities, modular offices, or any new construction project exposed to outdoor elements for up to 120 days. Their exceptional moisture resistance, meeting the stringent MR90 standard, ensures long-lasting durability, even in challenging environments - including interior applications with high humidity and limited washdown applications. ResinDek WR panels can be used on both the ground floor as well as mezzanine applications.
Panel Thickness:3/4"
Panel Weight:3.09 psf
Pallet Jack & Product Load Limits:pallet jack rolling loads
up to 2,000 lbs with 20 GA B-Deck
Mobile Robot & Product Load Limits:AMR rolling loads
up to 500 lbs with 20 GA B-Deck
* Reference the Load Span Tables below for Allowable Uniform & Total Product Loads.
* See Full Product Comparison Chart here.
ECO-FRIENDLY AND DURABLE
Manufactured with mostly recycled and recovered wood fibers, ResinDek WR panels are not only environmentally conscious but also highly resistant to rot and termites. The panels are manufactured using environmentally friendly phenolic resins without added urea formaldehyde, ensuring a safer and healthier indoor environment. Other proprietary additives ensure the ResinDek WR panel's resistance to decay. ResinDek WR has been independently certified to be CARB compliant, conforming to SCS Recycled Content Standard V7-0.
RESINDEK® WR SPECIFICATIONS
Manufactured by Cornerstone Specialty Wood Products, LLC®, ResinDek WR shall be 0.75” thick and have the durability and structural integrity to support rolling pallet jack rolling loads up to 2,000 lbs (910 kgs) with 20 GA (0.9 mm) B-Deck and AMR loads up to 500 lbs (230 kgs) with 20 GA (0.9 mm) B-Deck. ResinDek WR panels are available in sizes up to 4' x 8' (1219 mm x 2438 mm). The panel shall feature a tongue and groove configuration along the two long edges. The recommended finish shall be determined based upon the type and volume of traffic traveling on the floor. For detailed ResinDek WR Master Specifications please email or call Cornerstone Specialty Wood Products.
ResinDek WR FOR AGVS, AMRS, HEAVY EQUIPMENT, ROLLING LOADS & PALLET JACKS – For use with Corrugated B-Deck
| Product Name (B Deck Gauge) | Pallet Jack & Product Load Limits | Robot & Product Load Limits | Maximum Robot Contact Pressure |
|---|---|---|---|
| ResinDek® WR (20ga) | up to 2,000 lbs. | up to 500 lbs. | 500 psi |
NOTES FOR TABLES ABOVE:
- Testing was completed with polyurethane caster wheels and any deviation or alternative wheels such as crowned, steel or plastic could void the warranty. Contact CSWP for more information.
- Contact pressure values are to be used as a guide. Please consult factory for specific robot usage.
- For flooring solutions with B-Deck: Load values above are calculated on 36" beam spacing, increased spacing will reduce capacity. Floor Deflection is L/240.
OPTIONAL FINISHES
FOR HEAVY EQUIPMENT, STORAGE, ROLLING CARTS & PALLET JACKS
FOR ROBOTIC TRAFFIC
INDUSTRIAL MEZZANINE DECKING FASTENING SYSTEMS
TOP SIDE ENGINEERED FASTENERS
For conventional top side fastener installation, use Cornerstone Specialty Wood Products, LLC® Collated Stand-up Screwdriver and collated engineered drill screws. Not only will the collated screwdriver gun save you up to 40% in fastening costs, but it will reduce installation fatigue with its ergonomic design.
The top side engineered fasteners are designed for strength, durability and easy installation. No countersinking or pre-drilling is required as the wings are near the top of the shaft, which counterbore for screwheads. The number 2 square drive heads and points easily pierce up to 12 gauge steel decking and is designed to drill through wood and steel decking prior to the threads engaging, thus preventing the mezzanine floor panels from lifting.
In addition, our engineered fasteners offer the following advantages:
- More consistent screw depth with greater control and settings
- Easy to load screw tips
- Fast and easy bit tip replacements
- Requires minimal training
- Stout #10 wire gauge screw
- Zinc coating for high humidity environments resists corrosion
- Your choice of gray or beige engineered fasteners
INVISI-LOC® UNDERSIDE ENGINEERED FASTENING SYSTEM
Invisi-Loc provides showcase mezzanine floors with no visible fasteners that are dependable, economical and easy to install. The Invisi-Loc under deck engineered fastening system mounts fasteners under the mezzanine decking hiding unwanted screw holes on top. Plus, when installed with our pre-punched corrugated metal decking, installation time is reduced and potentially dangerous metal shavings are eliminated.
- 20 Invisi-Loc engineered fasteners are required per 4' x 8' sheet. A pneudralic installation tool and a standard medium duty air compressor supplies the required power.
- Corrugated metal decking is pre-punched and B metal deck is fastened to the bar joists like other steel decking using drilling screws or welding.
- All pneudralic installation tools can be rented or purchased from Cornerstone Specialty Wood Products, LLC.
- When installed according to Cornerstone Specialty Wood Products, LLC specifications the Invisi-Loc® Underside Engineered Fastening System carries a 10-year warranty.
COLLATED SCREWS FOR CORRUGATED METAL DECK
B-Deck screws work best in roll form beams and structural steel under 3/16" thick. Valleys less than 2-1/2" wide may not accommodate the screwdriver. Contact Cornerstone Specialty Wood Products, LLC for additional information.
Note: Additional Fastening Systems are available, please contact Cornerstone Specialty Wood Products, LLC® for more information.
-
Top Side Engineered Fasteners
-
Invisi-Loc®
-
Collated Engineered Drill Screws for Corrugated Metal Deck
