SYSTEMS INTEGRATORS
RESINDEK® FLOORING AND SHELVING SYSTEM IS THE SOLUTION FOR ANY SYSTEMS INTEGRATOR PROJECT
Systems Integrators of elevated industrial work platforms, pick modules, and mezzanines agree that ResinDek® composite engineered wood flooring panels offer the greatest value to their customers over concrete or bar/plank grating. Why? It's the most flexible for future modifications, the easiest to install (not to mention fast), provides the best value, and creates the most level surface.
ResinDek flooring panels maximize the durability and longevity of your customers' elevated surfaces under heavy loads, rolling carts, pallet jacks, autonomous mobile robots (AMRs), or automatic guided vehicles (AGVs).
With our in-house Engineering and Estimating teams we can provide fast response to quotations and comprehensive layouts to minimize field cutting and waste. We can save you time and money by also providing corrugated steel deck that is optimized for sizes, runs, steel thickness, corrugated profiles, and beam spacings. Let us help you design a hybrid flooring solution that is extremely cost-effective and is tailored to meet the needs of each individual project.
Do you have a unique application or a custom loading condition? We test both on-site and off-site and will work with you to develop a test to make sure ResinDek flooring will perform to our standards, for that specific application. Once we validate the test, we will back it with our 10-year ResinDek product warranty.
RESINDEK® FLOOR PANELS
ResinDek composite engineered flooring panels have the proven structural integrity to support rolling pallet jack loads from 2,000 – 8,000 lbs and AGV and AMR rolling loads from 500 – 6,000 lbs. Backed by a 10-year product warranty the panels are available in sizes up to 4' x 10' (1220 mm x 3048 mm). Panel thicknesses range from 3/4" to 1-1/2" and depending upon the application can be used as a single panel solution or with a corrugated metal deck.
RESINDEK FLOORING PANELS - For Use with Corrugated B-Deck
ResinDek® LD
3/4" Thick Panel
Robot loads up to 500 lbs.
Pallet loads up to 2,000 lbs.
ResinDek® SD
Loads Up to 3,500 lbs.
ResinDek® MD
3/4" Thick Panel
Robot loads up to 2,000 lbs.
Pallet loads up to 3,500 lbs.
ResinDek® HD
3/4" Thick Panel
Robot loads up to 4,000 lbs.
Pallet loads up to 4,500 lbs.
ResinDek® MAX
1-1/2" Thick Panel
Robot loads up to 6,000 lbs.
Pallet loads up to 8,000 lbs.
* Loads above include both weight of pallet jack + product.
RESINDEK FLOORING PANELS - Single Panel Solution - No Corrugated B-Deck Required
ResinDek® Xspan®
1-1/8" Thick Panel
Robot loads up to 2,500 lbs.
Pallet loads up to 3,000 lbs.
ResinDek® Xspan® FR
1-1/8" Thick Panel
Robot loads up to 2,500 lbs.
Pallet loads up to 3,000 lbs.
* Loads above include both weight of pallet jack + product and are calculated on 16" beam spacing.
RESINDEK® FLOOR FINISHES
Choose from Gray Diamond Seal® Antistatic for heavy rolling pallet jacks, Gray Diamond Seal® ESD when electrostatic dissipative is required, or MetaGard® GVT for drop zones or where aggressive dragging exists like in pallet flow areas. If you customer will be using mobile robots on mezzanines or work platforms, then specify TriGard ESD for AMRs and AGVs or MetaGard® SST for excessive wear areas.
FOR HEAVY EQUIPMENT, STORAGE, ROLLING CARTS & PALLET JACKS
Gray Diamond Seal® Coating
Gray Diamond Seal® ESD Coating
MetaGard® Steel Decking Surface - GVT
Unfinished
FOR AGV & AMR ROBOTIC TRAFFIC

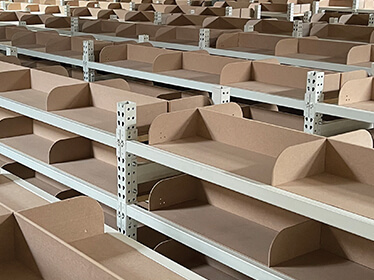

RESINDEK® SHELVING SYSTEM
ResinDek Shelving System can be designed to accommodate shelf heights of 6" to 20", shelf depths from 8" to 60", and vertical divider spaces from 4" on center to 48" on center. The custom machining allows for the possibility of the vertical dividers to be moved without the use of hardware, which provides a great deal of flexibility in the design of vertical divider spaces between shelves or within an individual shelf bay.
